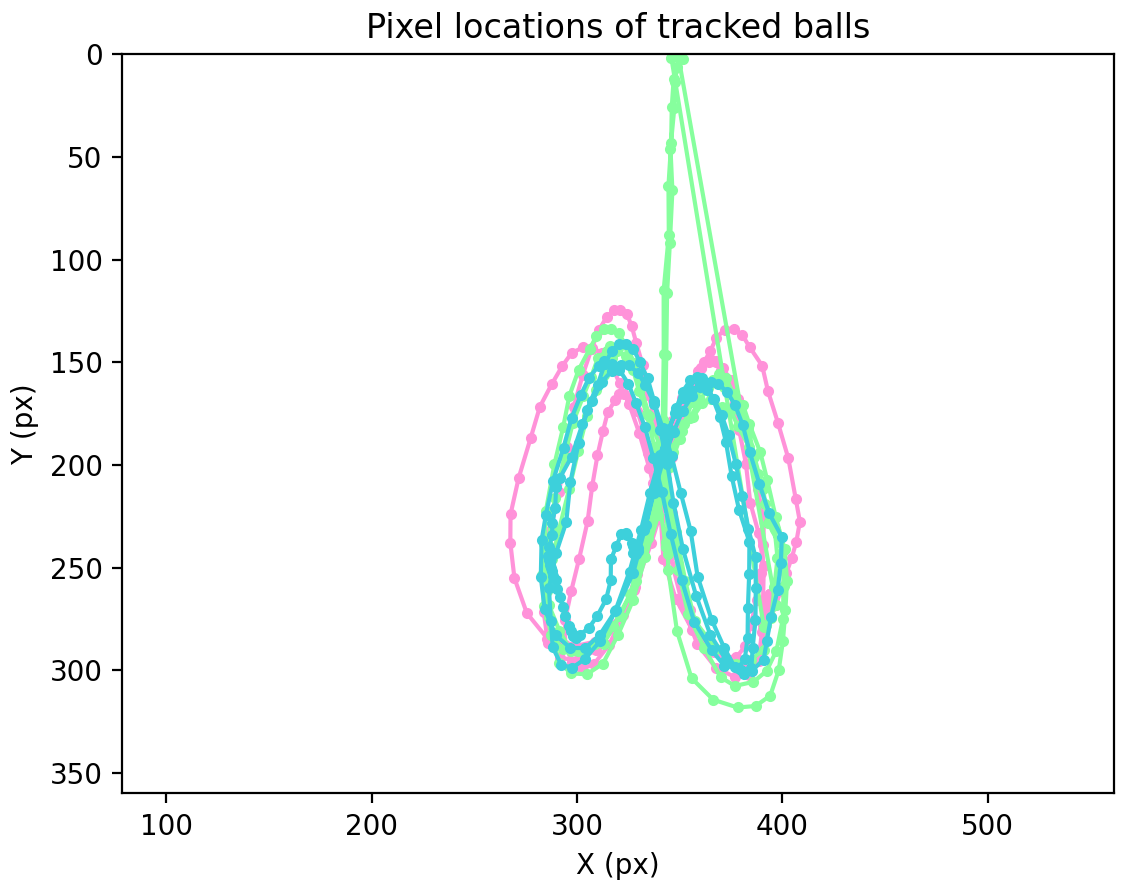

**Project 1 -- Due 2/16** **[ENGR 27 Spring 2024](index.html#schedule1_2024-2-1)** Once teams are finalized, you will find a personalized **`project1`** repository on the [Swarthmore github](https://github.swarthmore.edu/e27-spring2024). Commit and push your code, source video(s), and writeup by 11:59:59 PM on Friday, February 16. # Overview For this project, you will build a system to: * threshold a sequence of color or grayscale images to distinguish objects of interest from the background. * apply morphological operators to the thresholded images in order to remove noise and imperfections. * perform a connected components analysis to distinguish between separate objects, and to identify their locations in the image. * track the connected components over time. The last two items in the list above are collectively known as *blob tracking*. # Before you begin Check out the starter code at . Run all three example programs **`capture.py`**, **`regions.py`**, and **`bgsub.py`**. Read through them and note down any questions about their implementations to answer as you work through Project 1. Note you don't need to include any of the example programs or image files in your final project submission (but you may want to grab code from them, with proper attribution). # Tasks ## Thresholding Your system will produce a thresholded binary image where the non-zero pixels correspond to objects of interest (foreground), and the zero pixels correspond to background. You will need to decide on some important details of your thresholding approach. ***RGB Thresholding:*** In class, we discussed a way to threshold RGB-valued pixels by checking distance from a reference RGB value. Remember, you do not want to simply threshold each channel of an RGB image separately -- this will yield an image of shape `(h, w, 3)` of datatype `bool`, which is not the single-channel mask that we expect when doing background subtraction. Here is a useful one-liner for RGB thresholding: ~~~ Python mask = np.linalg.norm(img_cur.astype(np.float32) - object_color, axis=2) < tau ~~~ ***Background subtraction and temporal averaging:*** Aside from thresholding on color, another useful technique is to compare the difference of each frame to a reference image: ~~~ Python mask = cv2.absdiff(img_cur, img_ref).max(axis=2) > tau ~~~ This is illustrated in the [**`bgsub.py`**](https://github.com/swatbotics/e27_s2021_project1_starter/blob/main/bgsub.py) example program in the starter code. If your scene does not give you a clean reference image, you may want to use *temporal averaging* to generate one. In this approach, the system looks at the difference between a given pixel value at some location and the average intensity of that location over time. You can take a temporal average by simply adding together multiple frames and dividing by the number of frames; however, be careful about overflow. In practice, this means you will want to convert frames from 8-bit integer format to a represenation with more precision before summing them together as shown here: ~~~ Python accum = np.zeros((h, w), dtype=np.float32) cnt = 0 for frame in video: accum += frame cnt += 1 img_ref = np.clip(accum/cnt, 0, 255).astype(np.uint8) ~~~ Note the use of [`numpy.clip`](https://numpy.org/doc/stable/reference/generated/numpy.clip.html) to prevent overflow when converting back to the `numpy.uint8` datatype. Spatial averaging (adaptive thresholding) tends to be much more useful for static images than dynamic video, so it is unlikely you will use it for this project. ## Morphological operators Apply morphological operators to thresholded frames to eliminate noise and speckles. OpenCV provides [`cv2.erode`](https://docs.opencv.org/master/d4/d86/group__imgproc__filter.html#gaeb1e0c1033e3f6b891a25d0511362aeb), [`cv2.dilate`](https://docs.opencv.org/master/d4/d86/group__imgproc__filter.html#ga4ff0f3318642c4f469d0e11f242f3b6c), and [`cv2.morphologyEx`](https://docs.opencv.org/master/d4/d86/group__imgproc__filter.html#ga67493776e3ad1a3df63883829375201f) functions to implement these. Your goal here is to produce the best possible image to send into the next stage of the processing pipeline. Here are some tips about which operator to use, when: * Erosion gets rid of spurious foreground bits (e.g. "salt noise"). * Dilation gets rid of spurious background bits (e.g. "pepper noise"). * Opening/closing are good for "putting back" some of what erosion/dilation remove, which can be useful if you're doing special effects. * You can also pair up erosions and dilations with *different* structuring elements - for instance, you could use erosion by a small shape to eliminate salt noise, followed by dilation by a larger shape to replace lost mass and merge nearby disconnected components. If you're getting both kinds of noise (salt noise *and* pepper noise), it may be a sign that you can tweak your threshold value $\tau$ up or down until you only have one kind of noise. ***Converting masks between `bool` and `uint8`:*** If you have a boolean mask array in numpy and you want to get a `numpy.uint8` array, there are a couple ways of doing it. If you only care whether pixels are zero or nonzero, you can do this: ~~~Python # mask_bool is (h, w) of bool datatype mask_uint8 = mask_bool.view(np.uint8) # now mask_uint8 is (h, w) of np.uint8 datatype, # probably full of 0's and 1's ~~~ If you want to make sure that `False` maps to `0` and `True` maps to `255`, I suggest this code instead: ~~~Python mask_uint8 = np.where(mask_bool, np.uint8(255), np.uint8(0)) ~~~ Regardless, if you want to convert from a `numpy.uint8` array to a boolean array, do this: ~~~Python mask_bool = mask_uint8.view(bool) # now mask_bool is True wherever mask_uint8 was nonzero ~~~ ## Connected components analysis The OpenCV function [`cv2.findContours`](https://docs.opencv.org/master/d3/dc0/group__imgproc__shape.html#gadf1ad6a0b82947fa1fe3c3d497f260e0) retrieves the outlines of connected components of non-zero pixels. Applied to your thresholded image, this corresponds to outlines of the objects of interest in your scene. Some additional analysis of the contours yields information such as the area, centroid, and principal axes of each connected component (see the [**`regions.py`**](https://github.com/swatbotics/e27_s2021_project1_starter/blob/main/regions.py) example from the starter code for details). ## Tracking Your system should extract the position of each object's centroid in each frame and be able to track objects' trajectories over time by associating the connected components in the current frame with those of the previous frame (note that this is trivial in scenes containing a single object, but can become very tricky in scenes with many objects). ## Scenarios Your system should be targeted at some particular scenario. Here are some examples, ordered roughly in increasing difficulty: * A single brightly colored object moving through the scene. Example: the video of the bright green cup that I showed in class. * Two or three brightly colored objects with unique colors moving through the scene. Example: video of someone juggling two or more differently colored balls. * A single, arbitrarily colored object, tracked using background subtraction (with or without temporal averaging). Example: the cat video I showed in class. * Multiple objects with similar apperances, tracked using any technique described above. Example: the fruit flies video from class. (Fruit fly videos available [here](../images/flies1.avi) and [here](../images/flies2.avi).) You should be careful to pick a scenario that is feasible given your programming ability and the time available. If you have questions about picking a particular scenario, or coming up with your own, don't hesitate to ask. ***Dealing with video inputs:*** The [**`capture.py`**](https://github.com/swatbotics/e27_s2021_project1_starter/blob/main/capture.py) example program in the starter code demonstrates how to process video from a webcam or a video file in OpenCV. Your program can optionally operate on live video, but it must be able to successfully run on at least two distinct video files that you include in your submission (they can be separate clips or excerpts from a longer video). !!! Warning **Please resize your input videos to a maximum of 640 pixels wide.** This will make your program run much faster than full-aaHD video, and will also result in smaller files being uploaded to github. **Do not upload any videos larger than 50 MB to github.** You can use the [**`resize_video.py`**](https://github.com/swatbotics/e27_s2021_project1_starter/blob/main/resize_video.py) utility program from the starter code to resize videos and optionally trim them to length. Or if you like, you can adapt that code to perform similar tasks, like resizing camera frames as they come in from your webcam. # Evaluation criteria Your project will be evaluated by the following criteria (percentages are approximate): 1. **source code and raw data (15%)** - Turn in the full source code for your project. I expect your code to be neatly indented and reasonably commented. Unless the data was provided by me, you should also turn at least two sets of raw data (movie files and any additional input necessary) that can be supplied to your program as input. 2. **thresholding and morphological operators (25%)** - Your system should be able to output the thresholded binary images both before and after morphological operators have been applied. The output afterwards should be relatively free of noise and speckles, with the objects of interest well-distinguished from the background. Make sure your PDF writeup includes 2-3 representative image pairs from this intermediate data. 3. **connected components analysis & tracking (25%)** - Produce plots of the positions of the object(s) of interest over time in the video frame. Include at least one plot in your PDF writeup. 4. **performance (5%)** - Your system should run in real-time or close to it. I expect it to be able to process 640x480 video at least 10 frames per second (note that most video cameras gen- erate output at about 30 fps). Pre-processing for things like temporal averaging does not count against the real-time performance of your program. 5. **"cool factor" (10%)** - Go a little above and beyond the tasks described in the section above. Possibilities include allowing parameters of the system to be modified interactively, visualizing some aspect of the data not described above, using your system to achieve special effects, etc. The goal here is to engage a little more deeply with some aspect of the project that interests you. 6. **written report (20%)** - Your report should descripe your overall approach and its effectiveness. The report should include the images and plots from b and c. In addition to addressing the above criteria, your report should also address some questions about generality. How broad a class of data can your system work on? What assumptions are encoded in your methods? Would your system work with objects of different colors? In changing brightness conditions? # What to turn in Please make sure your github repository contains all of the following: 1. All source code needed to run your program. If your program requires command line arguments to run, it must document them on the command line when run with no arguments. 2. At least two video files for input to your program. Please downsample your video to a maxmimum frame width of 640 pixels both for performance reasons, and in order to avoid storing huge binary files in github. No single video file should be larger than 50 MB, and the total should be less than 100 MB. It's fine if your system works interactively on a live camera view, but it should also work on video you supply. 3. A PDF writeup describing your approach. Don't forget to include: * representative screenshots of input and binary mask images, before & after morphological operators * a plot of the trajectory of each object you are tracking * credit/attribution for any input images or videos you did not create yourself * a description of additional "cool factor" features beyond the minimal project requirements ## Example output Here's an example of some code I wrote to track the colored balls in this [youtube video](https://www.youtube.com/watch?v=rvxfXEHML4s&start=107&end=113):  Here are a few representative frames and masks, before and after morphological operations. Note that each mask image is actually the result of combining three independent mask images (one for each ball color). Frame | Masks before | Masks after ------|-------------|----------- ![](images/project1_debug0.png width="150px") | ![](images/project1_debug1.png width="150px") | ![](images/project1_debug2.png width="150px") ![](images/project1_debug3.png width="150px") | ![](images/project1_debug4.png width="150px") | ![](images/project1_debug5.png width="150px") ![](images/project1_debug6.png width="150px") | ![](images/project1_debug7.png width="150px") | ![](images/project1_debug8.png width="150px") The mask cleanup here was achieved by eroding by a small circle, followed by dilation with a slightly larger circle to merge up disconnected components. And here is a plot of $(x, y)$ pixel locations of blob centroids throughout the small clip above:  **Note:** I initially thought this would be a pretty easy clip to use, but there were a few issues that made it much tougher than I expected: * green ball color is similar to green grass color in some frames * green ball color is similar to blue ball color in some framaes * red ball color is similar to red shirt color in some frames I could have avoided a lot of clever coding if I'd have just picked an easier clip to start with!
